- Size: 12
- Place of Origin: China
- Brand Name: Shui po liang shan
- Model Number: HT-A1048
- Weight: 100.000 kg

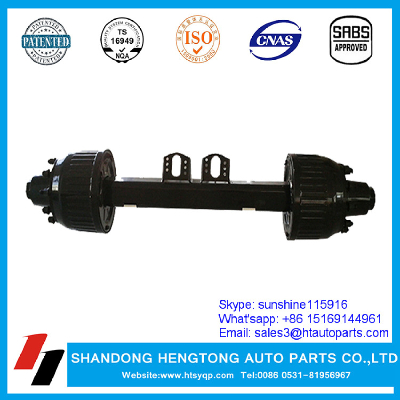

1) Reasonable structure,
2) Good braking quality,
3) High-intensity,
4) Big rigidity,
5) Long life as well as strong bearing capacity,
6) Passed the national authoritative department's monitor.
7) ISO9001:2000 and TS16949 certified.
8) Exported to many countries such as USA, Europe, Middle East, Southeast Asia and Africa etc.
Model No. | Capacity (T) | Brake ( MM ) | centre distance of brake chamberL4 | Axle Tube(mm) | centre distance of spring seat L3 | Stud | P.C.D | Track L2(mm) | Bearing | Total Length L1(mm) | Weight ( KG ) | Recommended Wheel |
ZY-A1060 | 12 | 420*200 | 420 | 150*150 | ≥980 | 10-M22*1.5 | 335 | 1840 | 33118/33213 | ≈2158 | 390 | 7.50V-20 |
ZY-A1061 | 14 | 420*200 | 430 | 150*150 | ≥900 | 10*M22*1.5 | 335 | 1840 | 32219/33215 | ≈2172 | 420 | 8.5V-20 |
ZY-A1062 | 16 | 420*200 | 280 | 150*150 | ≥900 | 10-M22*1.5 | 335 | 1840 | 32222/32314 | ≈2245 | 550 | 8.5V-20 |
Characteristics:
1).Special heat-treat, low-alloy steel axle beam, it has the virtues of good synthetic performance, strong load ability and lower self weight.
2).High quality alloy solid inserted spindle, through wholly heat treatment, provide superior fatigue capability.
3).High performance premium non-asbestos brake linings, extend service life.
4).Easy for ABS installation.
5).Camshaft, matching with special seals, can ensure no entry of the grease into the brake drum, more safety.
6).New tight fit hub cap O rings, high property for sealing.
7).Grease lubricant is supplied by Mobil that lengthens the time of free maintenance.
8).Full range of stud fixing such as ISO, BSF and JAP, it can meet the requirements of various wheel rims.
